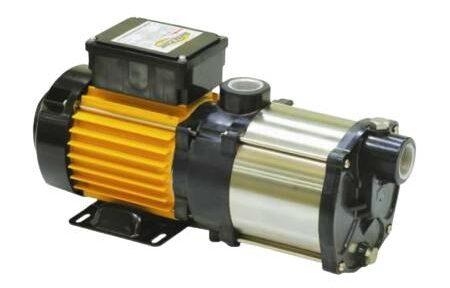

Centrifugal Pump – MCH-series

Mitsubishi MCH Series Automatic Multistage Centrifugal Pump energy savings. There is pressure and high water content. Non-corrosive and low noise. Easy Maintenance

Centrifugal Pump – MCH-series

MCH-series
High Head Multi-Stage Centrifugal Pump

MCH-series

Application

  • High in water pressure, durable and rust-proof, suitable for drinking and clean water, public facility water system to home, residence, building and various factory

Special Feature

  • High performance
    Provide both highest performance comparing to other kind of pump. Suitable for water booster system

  • Quiet operation
    Both pump and motor are design for quiet operation to suit for household application

  • Longer life

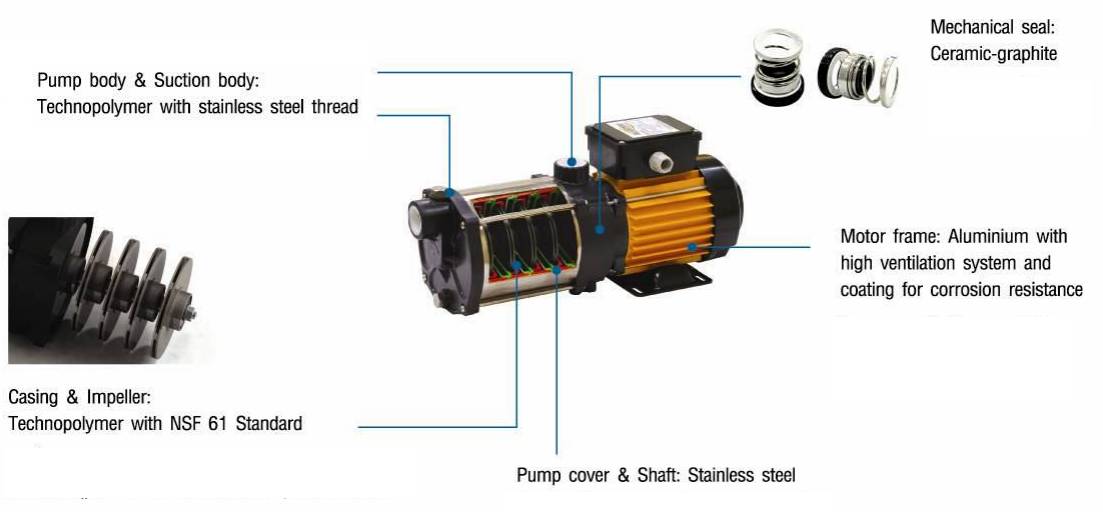

    Pump component are manufactured from non-corrosion materials

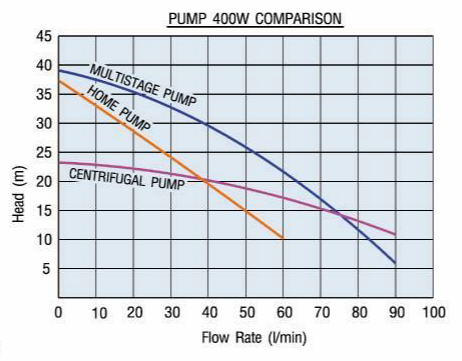

PUMP 400W COMPARISON
Selected Matarial

Specifications

MODEL PHASE POWER
(W)		 POLE V Hz A FLOW RATE
m3/h  0 0.6 1.2 1.8 2.4 3.0 3.6  4.2  4.8  5.4  6.0  6.6  7.2
l/min. 0 10 20 30 40 50 60 70 80 90 100 110 120
MCH-355S 1 350 2 220 ~ 230 50 2.7 TOTAL HEAD
(m)		 29.6 28.0 26.1 23.8 21.2 18.1 14.6 10.6 6.6 - - - -
MCH-505S 1 500 2 220 ~ 230 50 3.3 39.1 37.3 35.1 32.5 29.4 25.8 21.8 17.1 11.3 - - - -
MCH-655S 1 650 2 220 ~ 230 50 4.1 48.7 46.1 43.31 40.0 36.0 31.4 25.8 20.1 13.4 - - - -
MCH-755S 1 750 2 220 - 230 50 4.9 40.2 392 38.1 36.2 34.6 32.5 30.3 27.1 23.6 19.7 15.4 10.0 -
MCH-905S 1 900 2 220 ~ 230 50 5.9 50.8 49.4 48.0 45.8 43.6 40.6 37.1 33.5 29.1 24.2 18.1 11.7 -
MCH-905SH 1 900 2 220 ~ 230 50 6.1 66.1 64.1 60.6 57.1 52.4 47.1 39.3 335 25.4 - - - -

Maximum depth: 6m

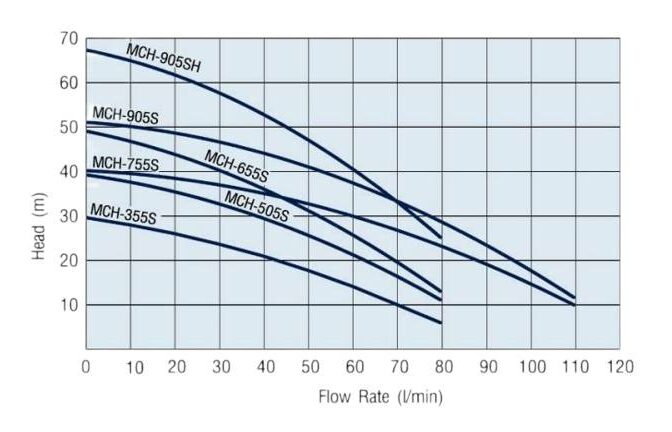

Characteristic curves

Curve

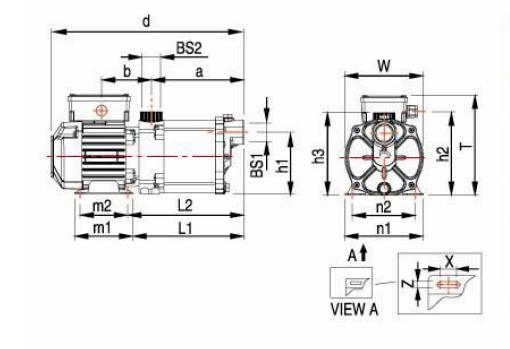

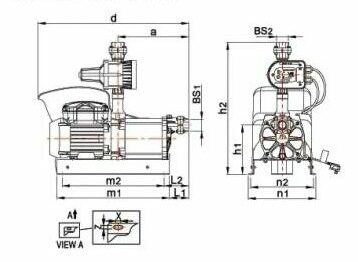

Outline dimensions

Dimensions
MODEL BORE SIZE DIMENSIONS (mm)
BS1 BS2 a b d h1 h2 h3 n1 n2 m1 m2 L1 L2 W T   Z
MCH-355S 1'' 1'' 147 99 322 117 158 157 148 112 110 90 177 187 149 189 18 7
MCH-505S 1'' 1'' 175 102 375 117 146 157 148 112 110 90 215 225 167 189 18 7
MCH-655S 1'' 1'' 204 102 404 117 146 157 148 112 110 90 244 254 167 189 18 7
MCH-755S 1'' 1'' 175 102 415 117 146 157 148 112 110 90 233 243 167 189 18 7
MCH-905S 1'' 1'' 204 102 444 117 146 157 148 112 110 90 261 271 167 189 18 7
MCH-905SH 1'' 1'' 204 102 444 117 146 157 148 112 110 90 261 271 167 189 18 7

Equipped with thermal protector

Cirumstant conditions

Ambient Temperature  -20  ~ +40˚C
Ambient Humidity 95% RH or less
Operation Altitude Less than 1,000m above sea level
Environment No bursting / erosive gas or vapor
Pumped Liquids Clean water, household supply water, drinking water,
non-aggressive water with pH rang 5-9 and
hot water with temperature not over than 40˚C

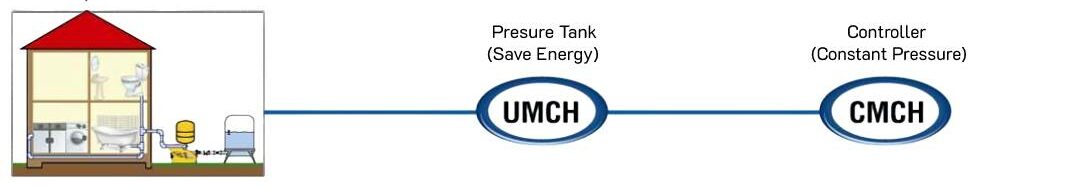

UMCH-series

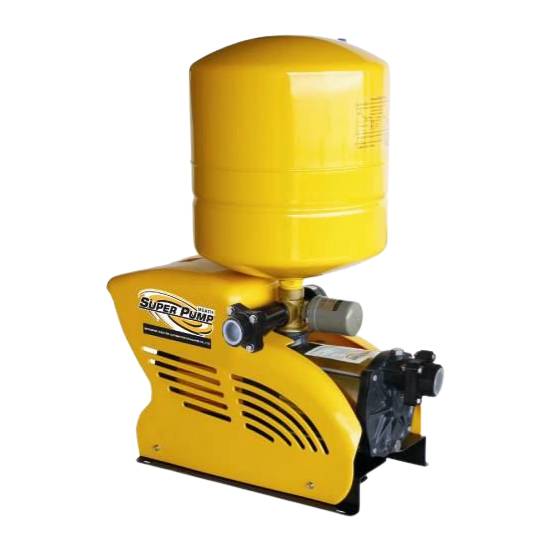

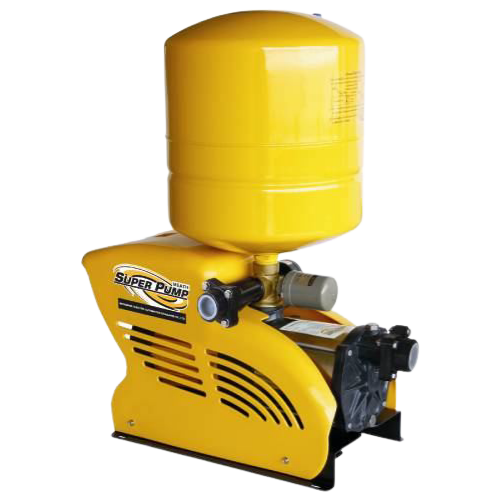

Automatic Multi-Stage Centrifugal Pump

UMCH-series

Special Feature

Special Feature

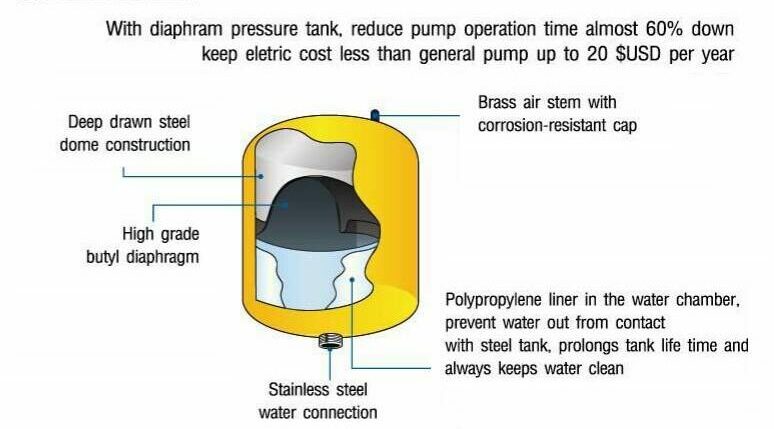

Pressure tank and all pump part made from food grade material verified by NSF standard. All water contact part made from non-rust material.

Pump operation cycle

Start-up cycle

Start-up cycle

When tank is empty and

system pressure downs to

minimum limit for water usage,
pump will automatically.

Fill cycle

Fill cycle

When pump starts, water

will be delivered to user

and filled into tank by
pump at the same time.

Holdcycle

Hold cycle

When tank is full and

system pressure ups to

maximum limit, pump
will automatically stop.

Delivery cycle

Delivery cycle

While pump rests, air pressure

in air chamber forces diaphragm

downward to delivering water
to system for energy save.

Specifications

MODEL POWER(W) PHASE V Hz A DEGREES
OF
PROTECTION		 BORE SIZE OUT PRESSURE SETTING
(kgf/cnrf)		 MAXIMUM HEAD
(m)		 MAXIMUM FLOW RATE
(l/min)		 TANK
SIZE
(liter)		 AIR PRESSURE
IN TANK
(Psi)		 WEIGHT
(kg)
IN
UMCH-505S 500 1 220   ̴ 230 50 3.3 IP 55 1'' 1'' 2.5 - 3.3 33 80 18 32 18.5
UMCH-655S 650 1 220   ̴ 230 50 4.1 IP 55 1'' 1'' 3.1 - 4.0 40 80 18 41 19.0
UMCH-755S 750 1 220   ̴ 230 50 4.9 IP 55 1'' 1'' 2.5 - 3.3 33 110 24 32 24.5
UMCH-905S 900 1 220   ̴ 230 50 5.9 IP 55 1'' 1'' 3.1 - 4.0 40 110 24 41 21.5

Maximum depth: 6m

Outline dimensions

Outline dimensions
MODEL BORE SIZE DIEMENSIONS (mm)
IN OUT a b d h1 h2 n1 n2 m1 m2 L1 L2 W T X Z
UMCH-505S 1'' 1'' 210 149 480 167 235 231 216 380 336 36 58 289 623 10 7
UMCH-655S 1'' 1'' 239 149 509 167 235 231 216 380 336 65 87 289 623 10 7
UMCH-755S 1'' 1'' 210 149 480 167 235 231 216 380 336 36 58 294 701 10 7
UMCH-905S 1'' 1'' 239 149 509 167 235 231 216 380 336 65 87 294 701 10 7

Cable length : 2m
Equipped with thermal protector

Dry running protection

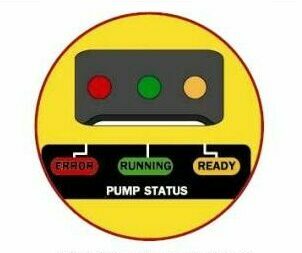

Protect pump damage from dry running and other abnormal condition. Also have LED light to inform pump status.

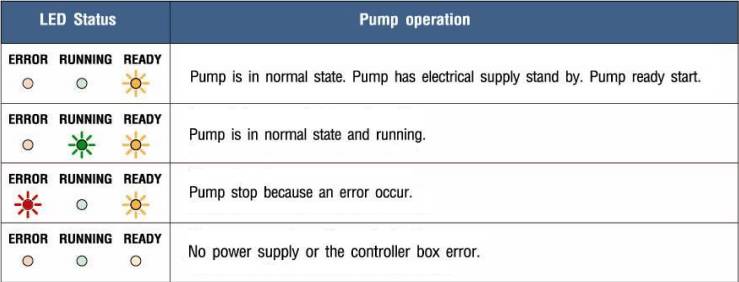

LED Status

LED Status

Addition pump protection

  • Over current
  • Low voltage supply
  • High voltage supply

LED Status (On terminal box)

LED Status

CMCH-series

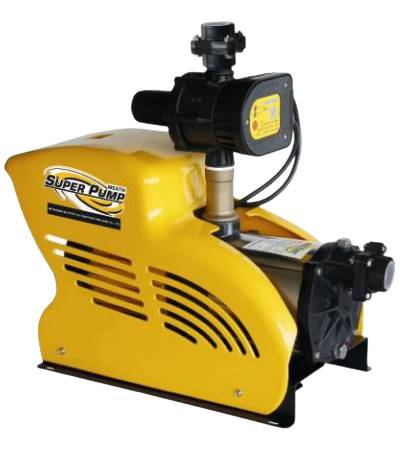

Constant Pressure Multi-Stage Centrifugal Pump

CMCH Series

Special Feature

  • One touch operation
    Pump start operation by only press on “Restart” button. Also provide user friendly control panel to indicate pump operation.

  • Dry running protection
    With built-in flow switch in controller, pump will stop immediatly when water is lacked to prevent from pump damage by dry running.

  • Constant water pressure
    Electronics system in controller device controls pump operation. Automatically start pump when water is required.
    Enable users to enjoy shower with constant pressure and stop pump when no water usage or any abnormal condition occurred.

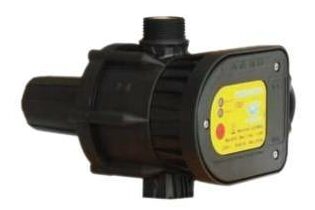

Electronic Controller

Electronic Controller

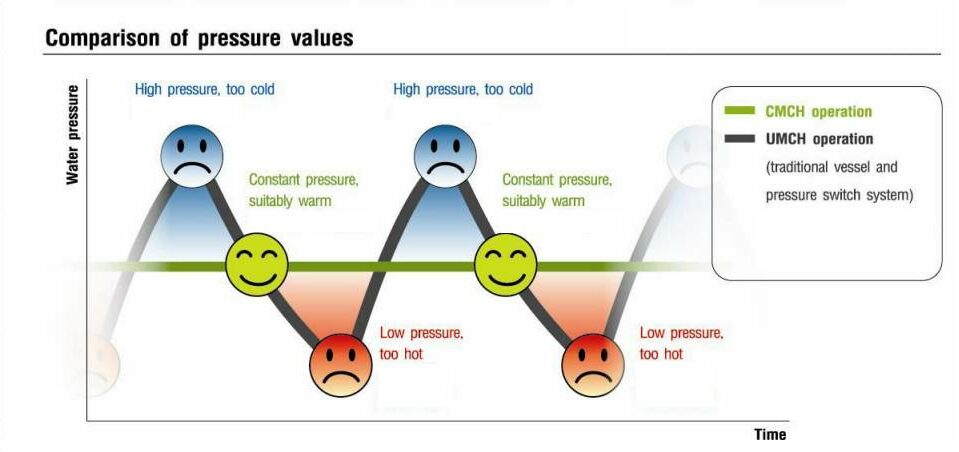

Comparison of pressure values

Specifications

MODEL POWER
(W)		 PHASE V Hz A DEGREES
OF
PROTECTION		 BORE SIZE START UP
PRESSURE
(Bar)		 MAXIMUM HEAD
(m)		 MAXIMUM FLOW RATE
(l/min)		 WEIGHT
(kg)
IN OUT
CMCH-505S 500 1 220   ̴ 230 50 3.3 IP 55 1'' 1'' 1.5   ̴ 2.0 39.1 80 15.4
CMCH-755S 750 1 220   ̴ 230 50 4.9 IP 55 1'' 1'' 1.5   ̴ 2.0 40.2 110 19.9

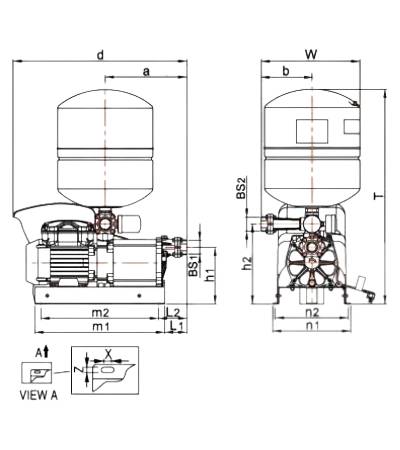

Outline dimensitions

Outline Dimensions
MODEL BORE SIZE DIEMENSIONS (mm)
BS1 BS2 a d h1 h2 n1 n2 m1 m2 L1 L2 X Z
CMCH-505S 1'' 1'' 210 480 167 447 231 216 380 336 36 58 10 7
CMCH-755S 1'' 1'' 210 480 167 447 231 216 380 336 36 58 10 7

Cable length : 2m
Equipped with thermal protector

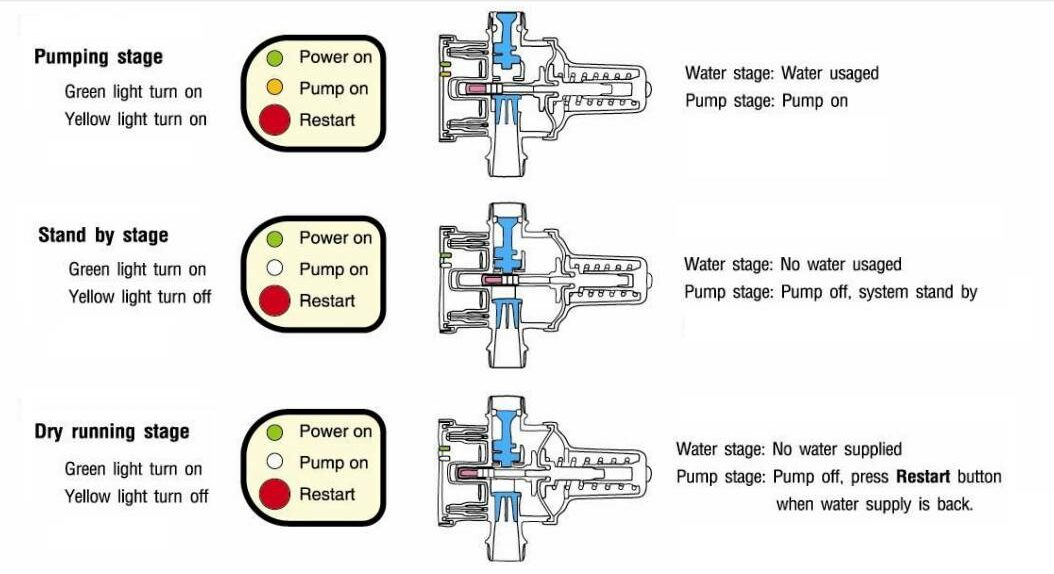

Controller operation

Controller operation

Warning

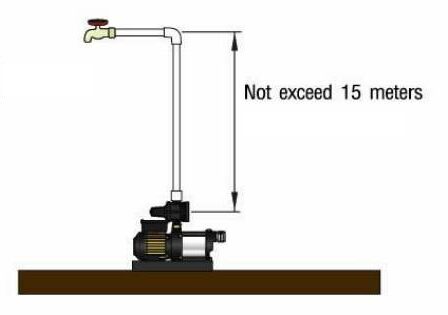

water column between controller and the highest service must not exceed 15 meters

ASP-series

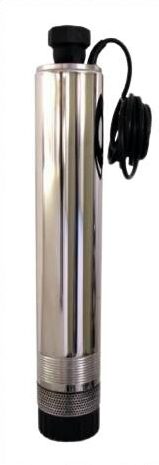

Deep Submersible Pump

Feature

  • Sand abrasive resistance impeller made from Acetal homopolymer resin (POM)

  • All structure made form SUS-304

  • Able to use with supply voltage drop to 160V

  • Able to use with fluctuated supply as generator

  • Built-in overload protector

  • Built-in removable spring check valve

  • Cable VCT-GRD 1 mm2 length 20 m.
ASP-Series
Application

Application

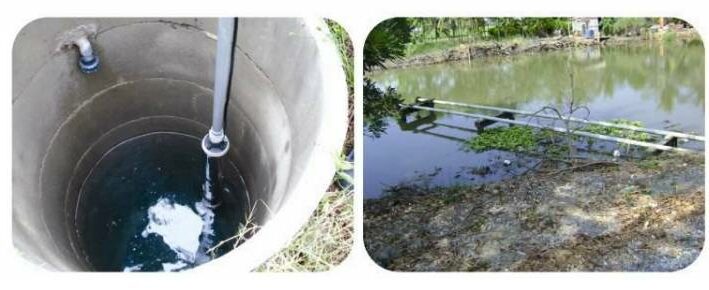

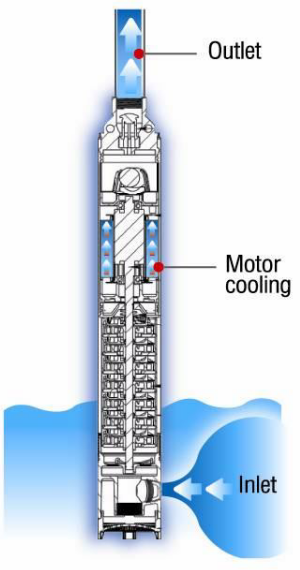

  • Use pumping water flow through motor for cooling. Able to use with any well, reservoir, river or other eater resource properly.

  • Easy installation by only submersing into water. No need to connect suction pipe or priming water as jet pump or centrifugal pump.

  • Able to apply with bore hole with dimension larger than 4″ size.

  • Suitable for pumping water from depth that centrifugal pump can not lift up. Pumping water from natural reservoir that far from home.
Sample

Specifications

MODEL PHASE POWER
(W)		 POLE V Hz A FLOW RATE
m3/h 0 0.6 1.8 2.4 3.0 3.6 4.2 4.8 5.4 6.0 6.6
l/min. 0 10 20 40 50 60 70 80 90 100 110
ASP-375S32/8 1 375 2 220   ̴ 230 50 4.0 TOTAL
HEAD
(m)		 62.1 55.8 48.0 21.9 7.0  -  -  -  -  -  -
ASP-375S32/6 1 375 2 220   ̴ 230 50 3.8 39.8 38.7 37.4 34.1 29.5 23.9 17.7 10.3  -  -  -
ASP-375S32/5 1 375 2 220   ̴ 230 50 4.4 32.7 32.1 31.4 31.1 29.2 26.8 24.4 20.5 16.6 11.6  -
ASP-375S32/7 1 750 2 220   ̴ 230 50 5.7 47.0 46.3 45.7 45.1 42.9 39.7 36.4 31.5 25.6 20.1 13.5

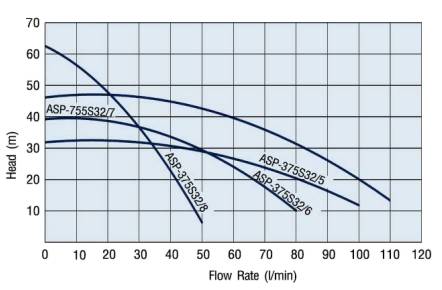

Characteristic curves

Curve 2

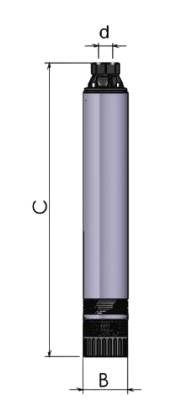

Outline dimensions

Outline dimensions

MODEL DISCHARGE
(d)		 B C STAGE
ASP-375S32/8 P.F.
1¼"		 98 610 8
ASP-375S32/6 98 613 6
ASP-375S32/5 98 624 5
ASP-375S32/7 98 786 7

Equipped with thermal protector

Installation

Installation

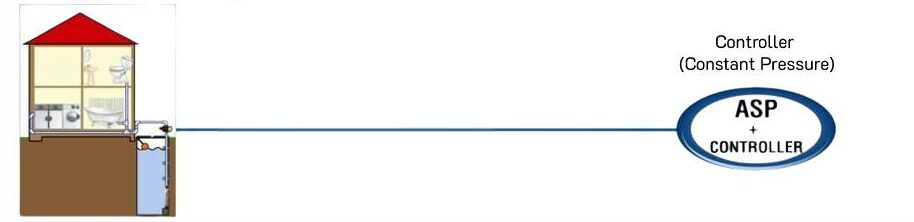

  •  Apply with electronic controller for automatic operation with constant pressure

  • Suitable for pumping water from well that water level is lower than 6 m.
    (Normal surface pump can not be used)

  • Electronic controller also stop pump when well lack of water to protect pump damage from dry running.

Pump Selection

1.Pump From Tank

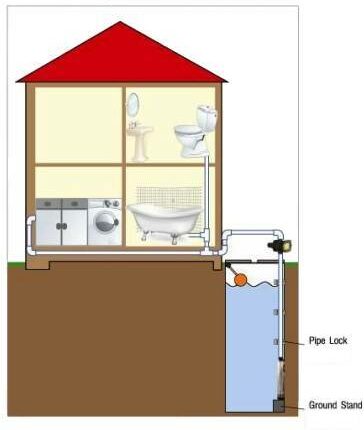

Pump From Underground Tank

2.Pump From Underground Tank (Less 6M)

Pump From Underground Tank

3.Pump From Underground Tank (More 6M)

Pump From Underground Tank2

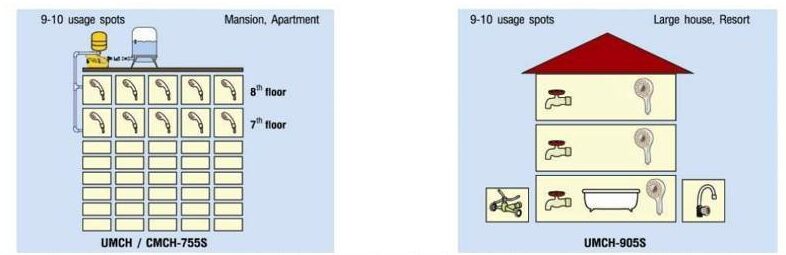

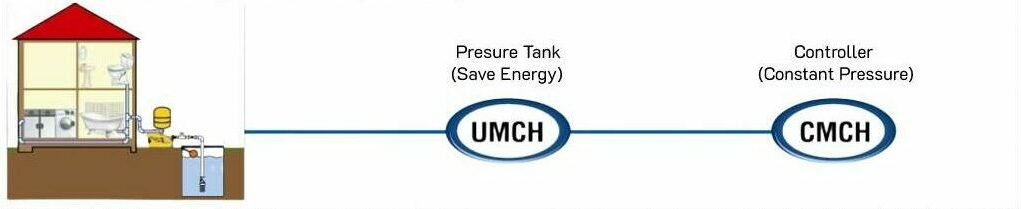

Model Selection

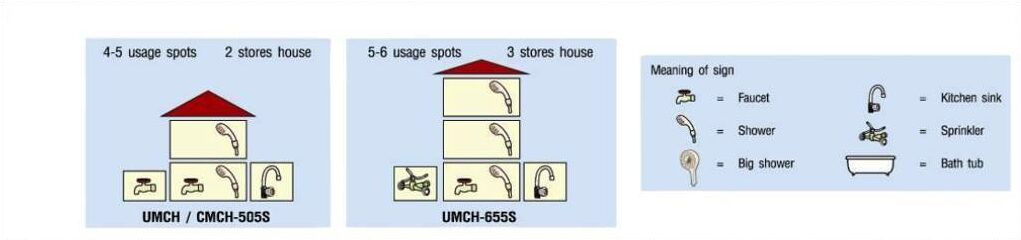

For Single houseand townhouse

Single house

For apartment

For large single house

For Apartment

Installation

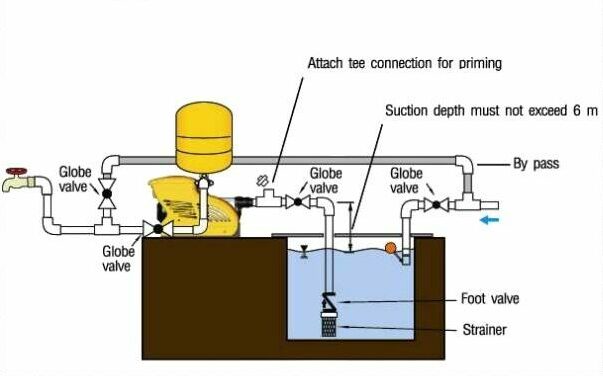

Pumping from well

Pumping from well

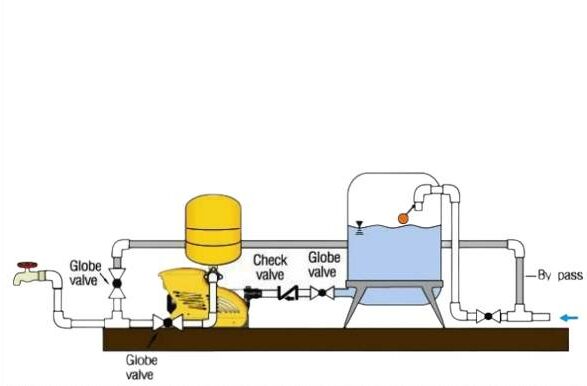

Pumping from tank

Pumping from tank

Warning : Always install Check Valve or Foot Valve at pump inlet pipe. Otherwise the automatic system not work property.

Warning : Should install globe valve both on discharge of pump. To check leakage in system.

Warning : Should be checking no water leakage in the system.

Warning : Should install pump to be nearest to well or tank. Apply less elbow at suction side as possible.

Accessories

Accessorie1

Pressure gauge for checking
water leakage in system.

Accessorie2

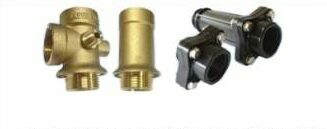

Brass check valve & Stainless steel
strainer for corrosion resistant.

Accessorie3

Automatic start-stop pressure switch ensure
controlled pressure in your water supply system.

Accessorie4

Pressure tank 18 and 24 lit.

Accessorie5

Electronic Controller start-stop pump
and maintain constant pressure.

Accessorie6

All connectors made from non rust materials

Why SUPER PUMP MEATH is your final water solution?

  •  Higher pressure
    With multi-stage centrifugal pump, produce higher pressure than other automatic pump.

  • Supply more water
    With higher pump capacity, pump can offer more discharge spots of water usage at the same time.

  • Energy save
    With large size diaphragm pressure tank, reduce pump operation time, less power consumed.

  • Low noise
    High quality motor & high technology in pump design bring out very low noise.

  • Anti-rust design
    All water-contact parts are made from plastic, brass & strainless steel, prevent corrosion and suitable to use with drinking water.

  • Easy installation
    With pipe coupling and large base, it can be installed to replace your former pump easily.
Contact Us
