Submersible Pump – CSP Series

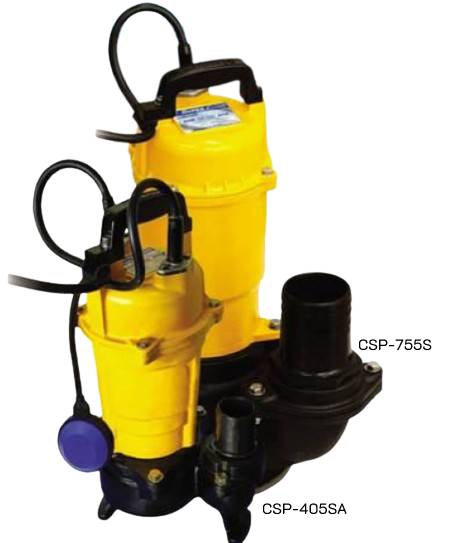

Submersible pump MITSUBISHI CSP Series Cast Iron Vortex Sewage Submersible Pump Mitsubishi CSP Series cast iron submersible pump impeller Vortex Impeller type suitable for general use. Both the agriculture, construction, sewer. And pumping liquids with high viscosity. Available to the precious liquid pH 5-9 at temperatures up to 40°C
CSP-Series
Cast Iron Vortex Sewage Submersible Pump

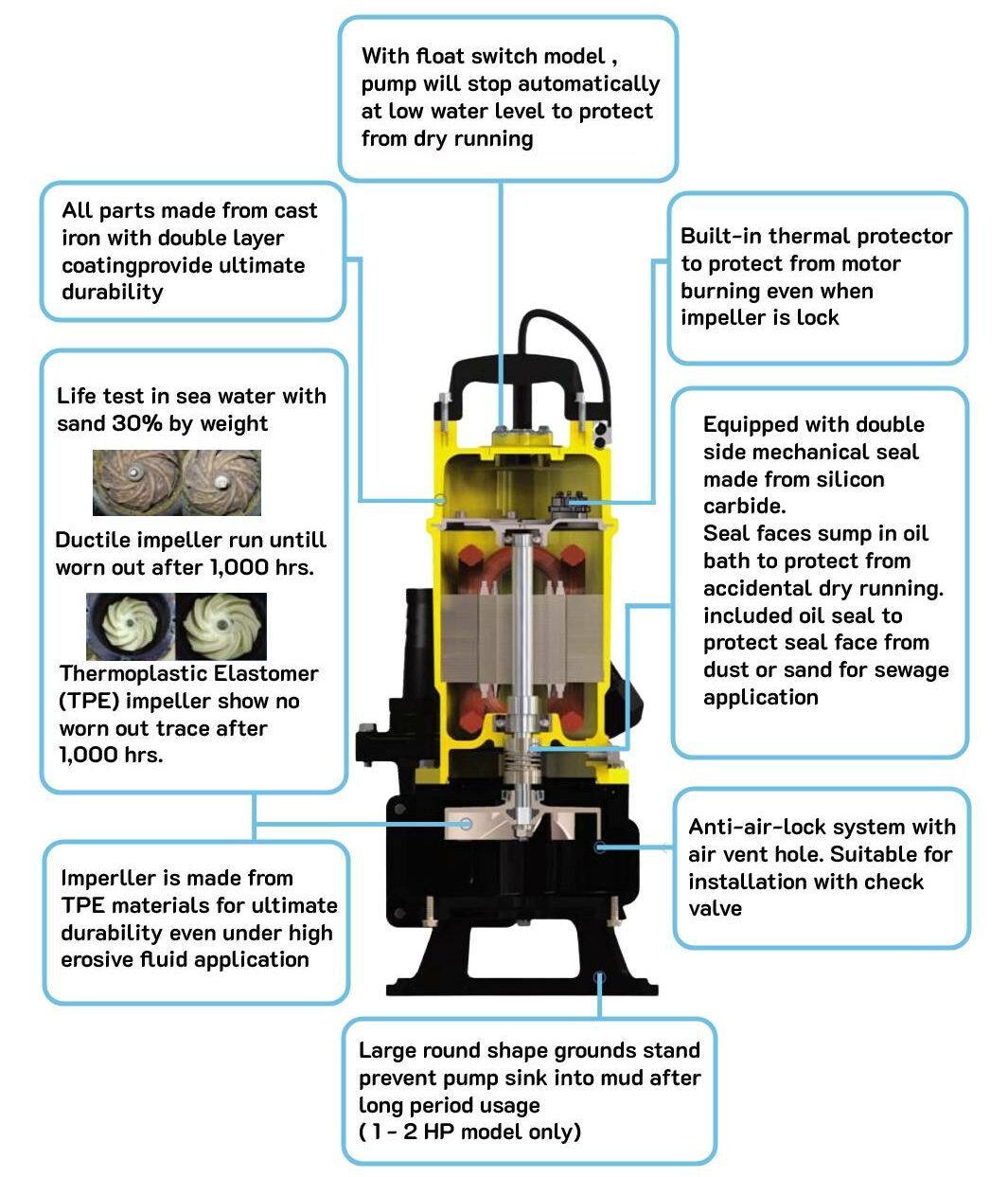

Special Features
- All part made from cast iron with double layer coating provide ultimate durability
- Build-in automatic thermal protector to protect motor from burning even
when impeller is being locked.
Specifications
| Item | Description | ||||||
|---|---|---|---|---|---|---|---|
| Liquid temp. | 0 ̴ 40˚C (32 ̴ 104˚F) | ||||||
| Applications | Waste water , solid Matters Sewage, Industrial water and Sea water |
||||||
| Pump Sect. | structure | Impeller | Semi-open and Vortex Type | ||||
| Shaft Seal | Double Mechanical Seal with Oil Chamber | ||||||
| Lubricant | Turbine Oil (SO VG32) | ||||||
| Material | Casing | FC-200 | |||||
| Impeller | Thermoplastic | ||||||
| M.Seal | SiC/SiC + Ceramic/ Carbon | ||||||
| Motor Sect. | Motor | Dry Type Submersible Induction Motor (IP68) 2P,Insulation Class F |
|||||
| Supply | 1ø, 220-230V, 50Hz 3ø, 380-415V, 50Hz |
||||||
| Starting Method | Capacitor Run (Single phase) Direct on Line (Three phase) |
||||||
| Protector | Miniature Thermal Protector (Single phase) Circle Thermal Protector (Three phase) |
||||||
| Bearing | Double Shielded Ball Type | ||||||
| Material | Motor cover | FC-200 | |||||
| Frame | FC-200 | ||||||
| Main saft | SUS304 | ||||||
| Cable | Single phase - VCT 3C x 1.0mm2 x 6m Three phase - VCT 4C x 1.0mm2 x 6m |
||||||
| Discharge Bore | Screwed Couping + Hose Coupling | ||||||
Performance Specifications
| Model | Motor Output | Phase | Supply | Maximum | Weight (kg) | Solid Passage (mm) | |||
|---|---|---|---|---|---|---|---|---|---|
| Head (m) | Flow Rate (l/min) | Current (A) | |||||||
| kW | Hp | ||||||||
| CSP-255S, SA | 0.25 | 1/3 | Single | 220 ̴ 230V, 50Hz | 7.3 | 190 | 3.0 | 20 | 35 |
| CSP-405S, SA | 0.40 | 1/2 | Single | 220 ̴ 230V. 50Hz | 9.2 | 255 | 4.0 | 20 | 35 |
| CSP-755S, SA | 0.75 | 1 | Single | 220 ̴ 230V, 50Hz | 12.3 | 550 | 6.6 | 30 | 35 |
| CSP-755T, TA | 0.75 | 1 | Three | 380 ̴ 415V. 50Hz | 12.3 | 550 | 2.4 | 30 | 35 |
| CSP-1505T, TA | 1.5 | 2 | Three | 380 ̴ 415V. 50Hz | 14.0 | 635 | 3.4 | 30 | 35 |

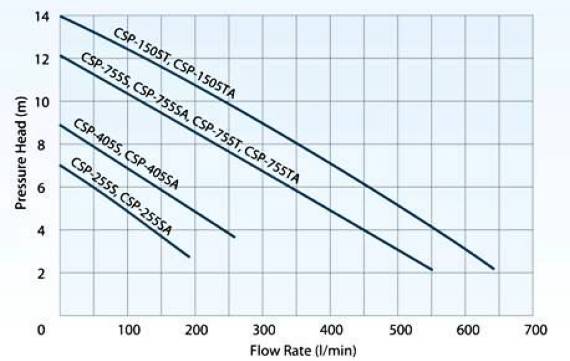

Characteristic Curve

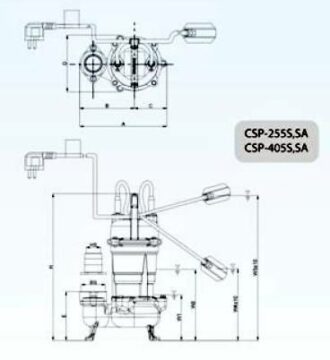

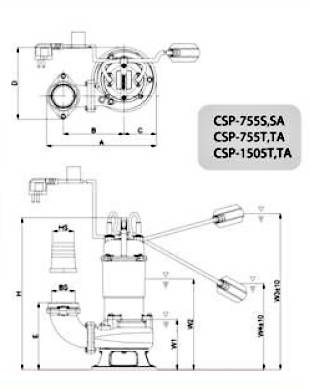

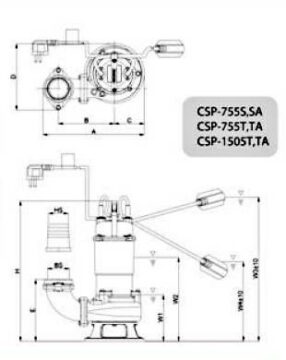

Dimensions
| Model | HS | BS | A | B | C | D | E | H | W1 | W2 | W3 | W4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CSP-255S, SA | 40 (1 1/2") | PF (2") | 244 | 116 | 90 | 161 | 132 | 409 | 130 | 260 | 460 | 170 |
| CSP-405S, SA | 50 (2") | PF (2") | ||||||||||
| CSP-755S, SA | 80 (3") | PF (3") | 367 | 202 | 170.5 | 244 | 224 | 496.5 | 170 | 310 | 600 | 230 |
| CSP-755T, TA | ||||||||||||
| CSP-1505T, TA |
unit : mm
Definition
- W1 : Lowest water level that pump can lift up
- W2 : Continuous operation water level
- W3 : Pump start water level (automatic float switch model)
- W4 : Pump stop water level (automatic float switch model)
Options upon request :
- Neoprene cable H07-RNF with request length
- Other voltage or frequency
- Different bore size from catalog
- Special Mechanical seal Please contact nearby dealer

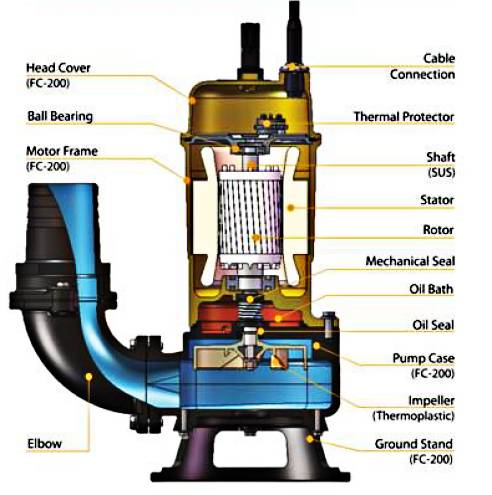

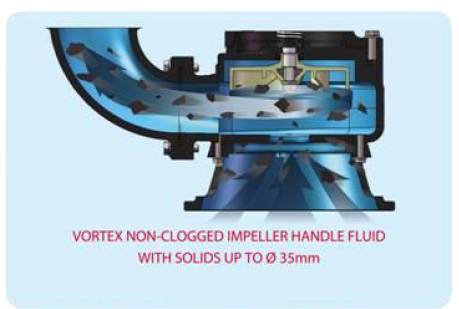

Construction Characteristics
General Purpose Sewage Submersible Pump
Application

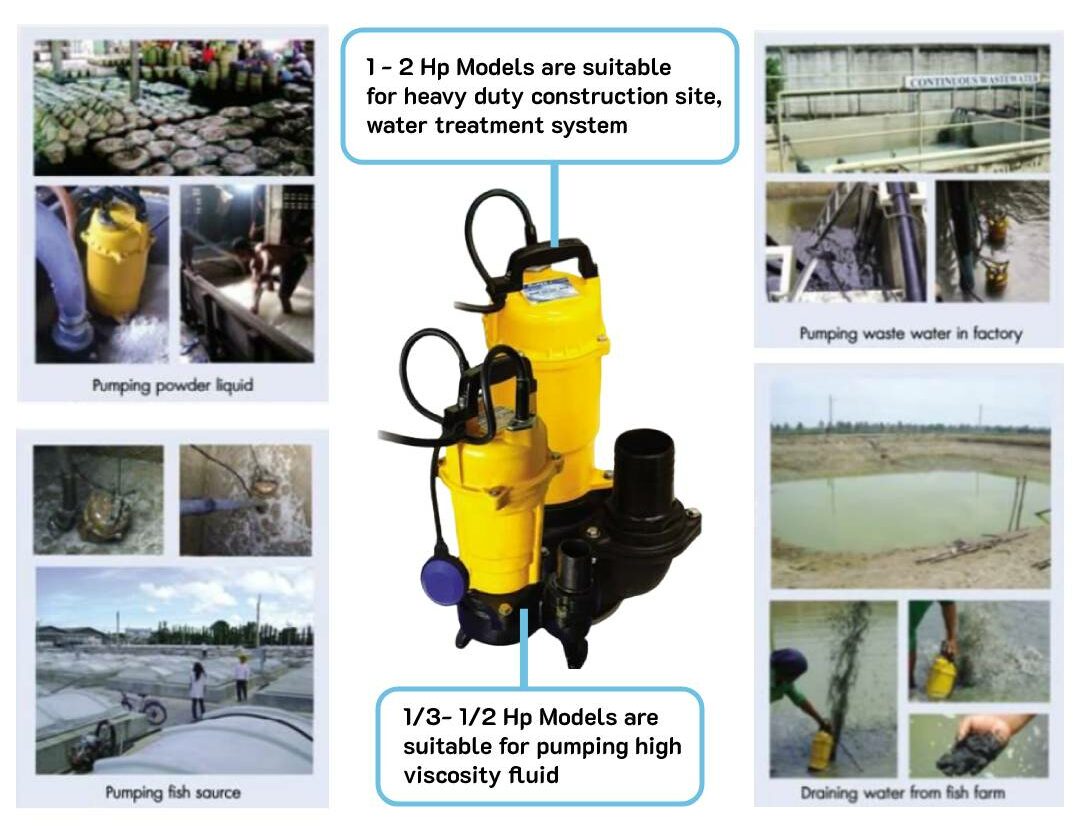

- Agriculture : drainage water in animal farms, fish farm,shrimp farm, planting fields including sea water drainage
- Construction : muddy fluid with gravel and sand pumping
- Drainage : treatment sump, sewage waste water
- High viscosity fluid pumping : fish sauce, raw rubber. rice contained water. flour liquor
- Applicable to fluid with pH 5-9 and temperature not over 40°C
From many kinds of actual field test ensure that this pump is suitable for various sewage application.
