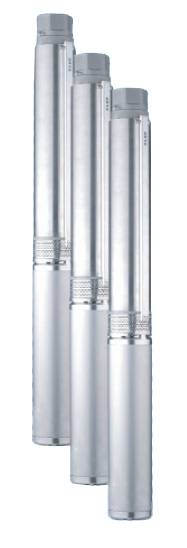

DEEP WELL SUBMERSIBLE PUMP – DSP Series

The Deep Well Submersible Pump (DSP) series is a type of pump that is designed to be installed deep below the ground level, usually in a well or borehole. This pump is specifically designed to be submerged in water and is typically used for pumping water from underground sources, such as wells or boreholes, to the surface.

The DSP series typically consists of a motor, impeller, and pump body that are all enclosed in a waterproof housing. The motor provides the power to turn the impeller, which then moves water through the pump body and up to the surface. These pumps are capable of pumping water from depths of several hundred feet and are often used in agricultural, residential, and commercial applications.

Special Feature

Submersible pump with electric motor driven by 220-volt AC 50 Hz alternating current.

Three-phase motor with a water-cooled closed circuit for dissipating heat, with a speed of 2,850 RPM

It can operate normally even with only 160 volts of power supply (for 1-2 Hp Model)

It can work well with an unstable power source such as a generator.

Equipment to protect against motor overheating and lightning strikes.

Used in conjunction with control box with capacitor start, capacitor run, and overload protection devices inside the box.

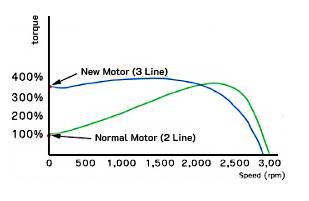

Increase the high-current starting performance up to 3 times, even in low-voltage conditions, and reduce problems with sand sticking during startup.

Specifications

Model	supply	Output		Flow Series	Flow Rate								Current (A)
		Output			m³/Hr	0	1.2	2.4	3.6	4.8	6.0	7.2
		kW	Hp		l/min	0	20	40	60	80	100	120
4DSP-755E32/12	1 Phase 220-230V 50 Hz	0.75	1	10 GPM	Total Head (m.)	110	94	52					7.6
4DSP-755E40/12		0.75	1	15 GPM		75	67	58	47				7.6
4DSP-1105E40/19		1.10	1½	15 GPM		117	103	92	72				10.8
4DSP-755E32/8		0.75	1	20 GPM		60	58	53	44	32			7.6
4DSP-1105E32/12		1.10	1½			90	87	81	69	49			10.8
4DSP-1505E32/16		1.50	2			122	117	106	88	64			12.1
4DSP-1105E50/8		1.10	1½	30 GPM		56	55	54	53	50	44	36	10.8
4DSP-1505E50/11		1.50	2	30 GPM		76	70	67	65	60	51	33	12.1

Model	supply	Output		Flow Series	Flow Rate
		Output			m³/Hr	0	3.0	6.0	9.0	12.0	15.0	18.0	Current (A)
		kW	Hp		l/min	0	50	100	150	200	250	300	Current (A)
4DSP-1505E50/8	1 Phase 220-230V 50Hz	1.5	2	50 GPM	Total Head (m.)	51	45	39	27	10			12.1
4DSP-2205E50/12		2.2	3	50 GPM		71	64	56	39	19			17.8
4DSP-1505E50/7		1.5	2	85 GPM		39	37	33	30	23	18	13	12.1
4DSP-2205E50/9		2.2	3	85 GPM		48	43	40	35	30	20	10	17.8

Deep Well Pump 4 Inch

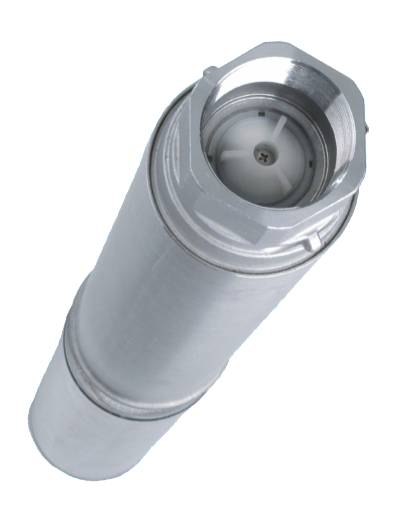

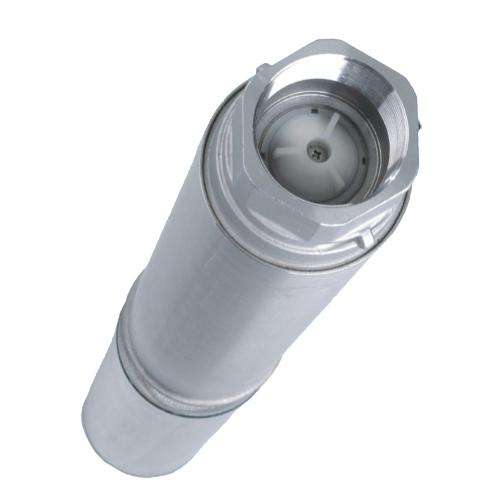

Structure

The Multi-stage Pump has a check valve and is designed to be installed in a well with a diameter of 100 mm (4 inches)

Pump Casing , Shaft , Coupling , Cable Guard , Discharge Head , Motor Adapter Made From Stainless Steel.

Blades made of Acetal Homopolymer Resin (POM) material are highly resistant to color abrasion from sand and do not contain toxic solvents mixed with the water used for consumption.

The “Sand Shield” fan system is designed to prevent sand accumulation and is composed of a Tri-seal floating stage system with a water-resistant ring made of corrosion-resistant steel.
Additionally, it has anti-sand rubber strips. Moreover, some models are designed with flat blades to provide high-performance operation.

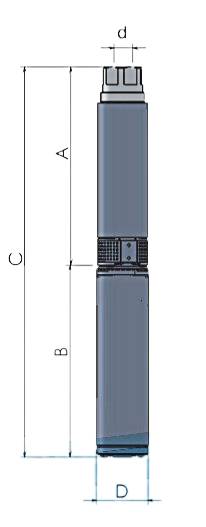

Outline Dimensions

Model	Discharge (d)	A	B	C	D	Stage	Weight (kg.)
Model	Discharge (d)	(mm.)				Stage	Weight (kg.)
4DSP-755E32/12	P.F. 1 ¼''	340	320	660	94	12	14.0
4DSP-755E32/8		390	320	710	94	8	14.9
4DSP-1105E32/12		505	350	855	94	12	19.2
4DSP-1505E/16		650	395	1045	94	16	22.9
4DSP-1105E40/12	P.F. 1 ½''	470	320	790	94	12	15.0
4DSP-1105E40/19	P.F. 1 ½''	680	350	1030	94	19	18.0
4DSP-1505E50/8	P.F. 2''	475	350	825	94	8	16.9
4DSP-1505E50/11		585	395	980	94	11	20.0
4DSP-1505E50/8		595	395	990	94	8	21.5
4DSP-1505E50/7		665	395	1060	94	7	23.5
4DSP-2205E50/12		835	605	1440	94	12	28.5
4DSP-2205E50/9		905	605	1510	94	9	28.5
