TORNADO (WSP-105S)

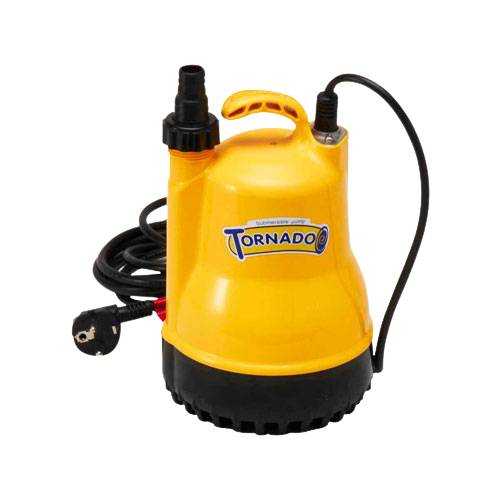

Submersible Pumps MITSUBISHI Tornado WSP-105S Series : General Purpose Water Submersible Pump
Draining water in limited area such as basement, garage and Etc.
Special Features
- Built-in automatic thermal cut-out to protect motor from burning.
- Equipped with motor protection to avoid water leakage for completely harmless to human or animals.
- Designed to be cooled by pumped water for continuous operation.
- 25 mm lowest water level.
- Aluminium alloy structure parts for excellent heat transferring.
- Outer cover is made of high-graded plastic, performs high stress resistance, superior shock & corrosion durability with light weight.
- Accompany with hose coupling in both 1/2 and 1-inch sizes.
- Power cable length is 3.5 meters
Selected Materials
ABS (High Impact) Strainer
Nylon 6 with 30% Glass Fiber Impeller
Stainless Steel Shaft
Aluminium Motor Frame
Specifications
| Model | WSP-105S | |||
|---|---|---|---|---|
| Max. Head | 6.5 m | |||
| Max. Flow Rate | 82 l/min | |||
| Max. Particle Size | 5 mm | |||
| Weight | 3.5 kg | |||
| Power Output | 100 W | |||
| Phase | Single Phase | |||
| Voltage | 220 - 240 V | |||
| Frequency | 50 Hz | |||
| Motor Type | Capacitor Starting | |||
| Insulation Class | B | |||
| Power Cable | VCT 3C x 0.75 mm2 x 3.5 m | |||

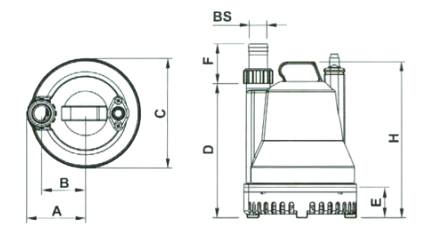

Dimensions
| BS | A | B | C | D | E | F | H |
|---|---|---|---|---|---|---|---|
| 25(1'') | 78 | 59 | 148 | 180 | 40 | 55 | 211 |

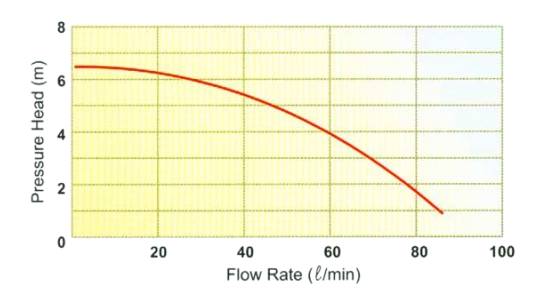

Characteristic Curve
Applications
- Flood draining in a limited area such as basement, garage, sump, pits etc.
- Draining swimming pool, tank, fish bath or aquariums.
- Supplying water for gardening or fountains.
- Other house application such as washing car, wasting water disposal
(dish washer, washing machine).
Recommend : For safety condition, please always apply the earth leakage circuit breaker together with the pump.
